System - IS15
Saeshin Implant Traus XCube

IS15



IS15 Saeshin Implant  Traus XCube

IS15 Saeshin Implant  Traus XCube

<Program memory function >

- Maximum 9 programmable memories for setting Speed, Torque,Rotating direction,,Irrigation pump,lntensity and Boost.

<Automatic overload protection function >

- The motor is automatically stopped and 'Error sign display on screen when the load is higher thanTorque value.

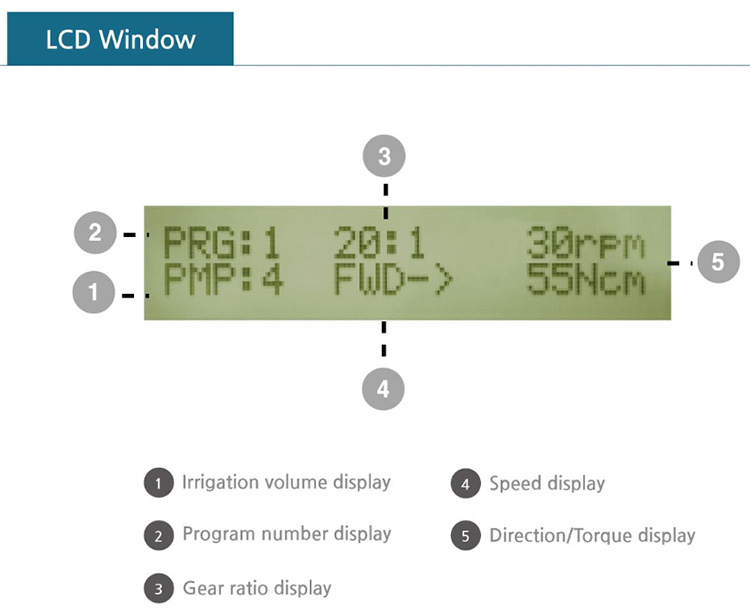

<Realtime RPM,TORQUE view system >

-Actual RPM and Torque value are displayed on the screen. It makes user can do more delicate operation.

<Motor Auto-calibration function >

- This model is manufactured by ISo which can be compatible with products of advanced companieslike NSK, KAVO etc.

- Offers memory function of gear ratio;1:5,

1:4,1:1,16∶1,20:1,27∶1,32∶1,64:1(different by each company)

/IS15 Saeshin Implant  Traus XCube

IS15 Saeshin Implant  Traus XCube

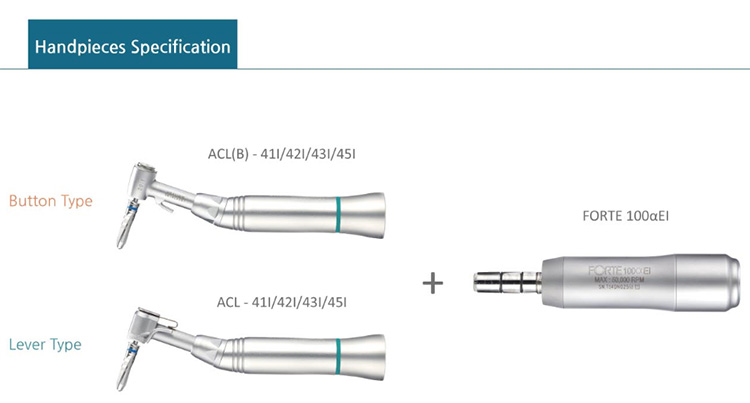

Contra Angle Handpiece

  ACL(B)-411 ACL(B)-42I ACL(B)-43I ACL(B)-451 ACL-411 ACL-42l ACL-43I ACL-45l
Bur type

Button Type

Lever Type

Gear ratio 20∶1 16∶1 64∶1 32∶1 20∶1 16∶1 64∶1 32∶1
Max.Torque 55Ncm 55Ncm 65Ncm 65Ncm 55Ncm 55Ncm 65Ncm 65Ncm
Max.RPM 2,500 3,100 780 1,560 2,500 3,100 780 1,560
Min.RPM 30 40 10 20 30 40 10 20
weight 60g 60g 64g 60g 60g 60g 64g 60g



E-type Motor

  FORTE 100aEl
RPM 50,000 RPM
Dimension (mm) L128×L1 32 x L2 90
Weight 212g



* Handpiece is sold separately.

 IS15 Saeshin Implant  Traus XCube

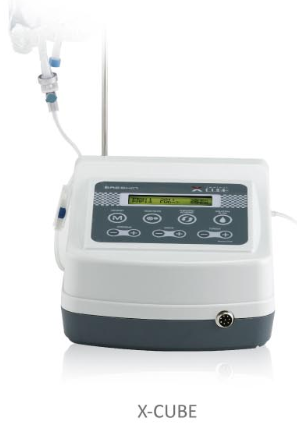

                                                                                  Controller

lnput

AC 100-120 V,220-240 V

Fuse 5A / 2A
Frequency 50/60 Hz
Output 230W
Maximun pump Max.75me / min
Dimension(mm) W205×D210xH136
Weight 3.3kg



IS15 Saeshin Implant  Traus XCube































IS15 Saeshin Implant  Traus XCube

IS15 Saeshin Implant  Traus XCube

IS15 Saeshin Implant  Traus XCube
