Push Button

Single Spray

Quick Coupler

Imported Germany ball bearing

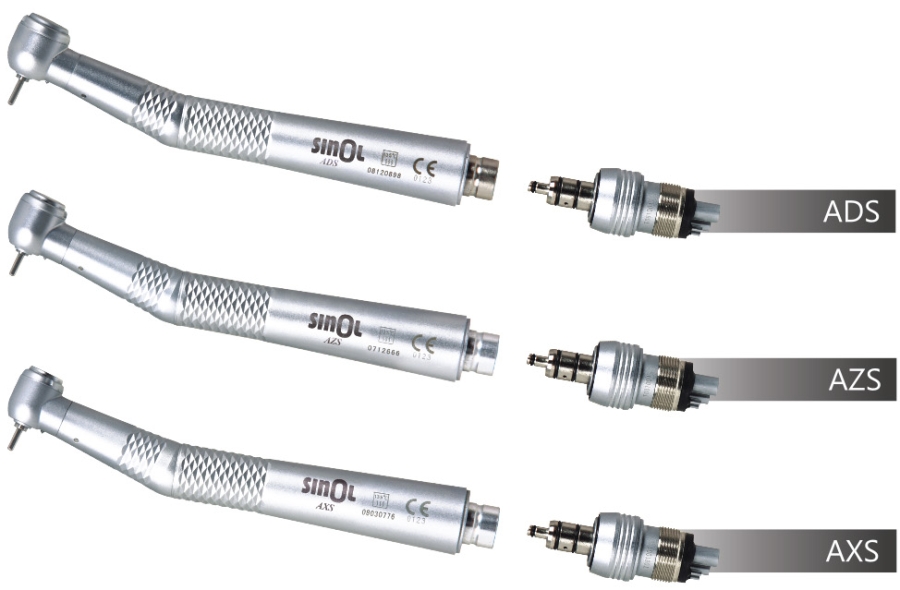

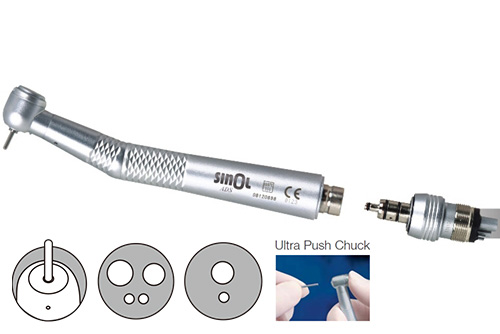

SINOL AXS handpiece has attracted more and more concern for its small diameter, low height and big torque , which is the essential product for children dental chair.
Technical parameter and features:
1 The size of head: φ10.2×13.1, imported German ball bearing.
2 Quick coupling, anti-retraction system, avoid cross infection.
3 Working pressure：4 holes  0.25MPa, gas consumption: 30-36L/min.
4 Cartridge unbalance ≤180μg,radial runout ≤0.01mm
5 Cooling: single point spray coolingh, when the water pressure is 0.2MPa, the cooling water quantity ＞55mL/min.
6 Rotation speed: 350，000-410，000 rpm.
7 Cutting force: radial direction≥0.7Kg，axial direction≥2.0Kg.
8 Noise≤65dB.
9 Torque: 0.08～0.09N.cm.
10 It is recommended to be sterilized under 135℃ high temperature and high pressure steam.
