- S868-1

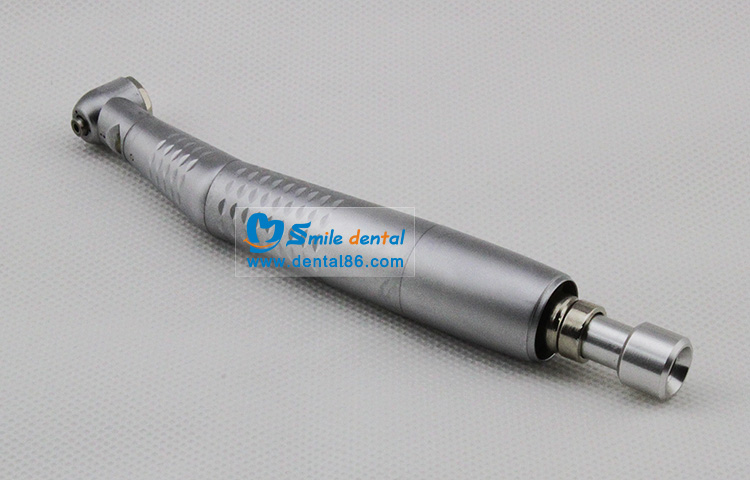

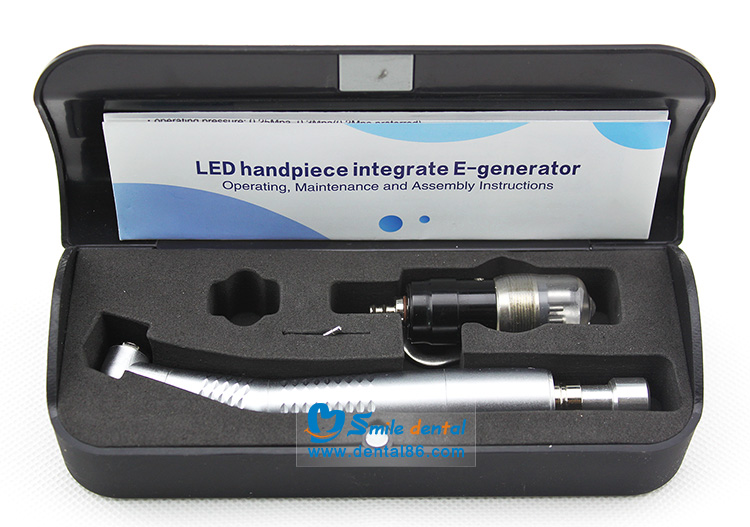

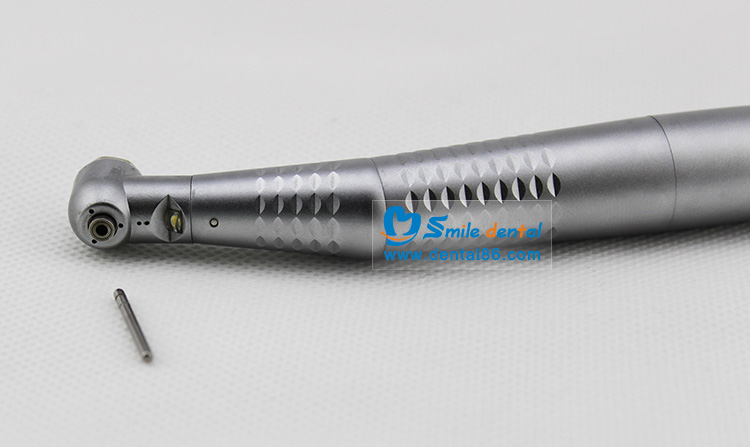

E-Generator LED Handpiece with Quick Coupler

S868-1

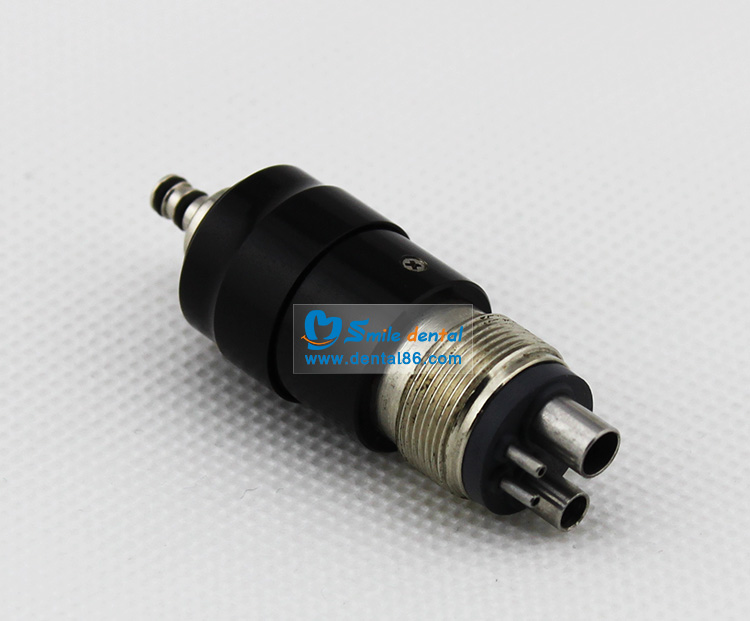

quick coupling design,360°twirling.NSK quick connector
A nti-retraction system



Touque head/standard head
Can be used without fiber optic system
Adopt universal 2 hole and 4 hole system
Triple sprays
Push button cartridge
Autoclavable

Technical data:
Operation air pressure: 0.25Mpa-0.3Mpa (0.25Mpa preferred)
Atomization pressure: Under 5.00Mpa (0.30Mpa preferred)
Free load speed: 280, 000 R. P. M. For Torque head
350, 000 R. P. M. For Standard head
Spray: Triple water spray
Supply voltage: 3.0-3.8V
Grip powder: 25-45N
Bur applicable: Φ 1.595-Φ 1.600 mm
Net weight: 88g
Speed of generator: 18, 000-22, 000 R. P. M.
Noise: ≤ 70dB
Execution: According to ISO 7785-1: 1999
LED luminous intensity: ≥ 1500mcd
LED temperature: 3500K-4000K
Life of LED bulb: ≥ 5000 hours

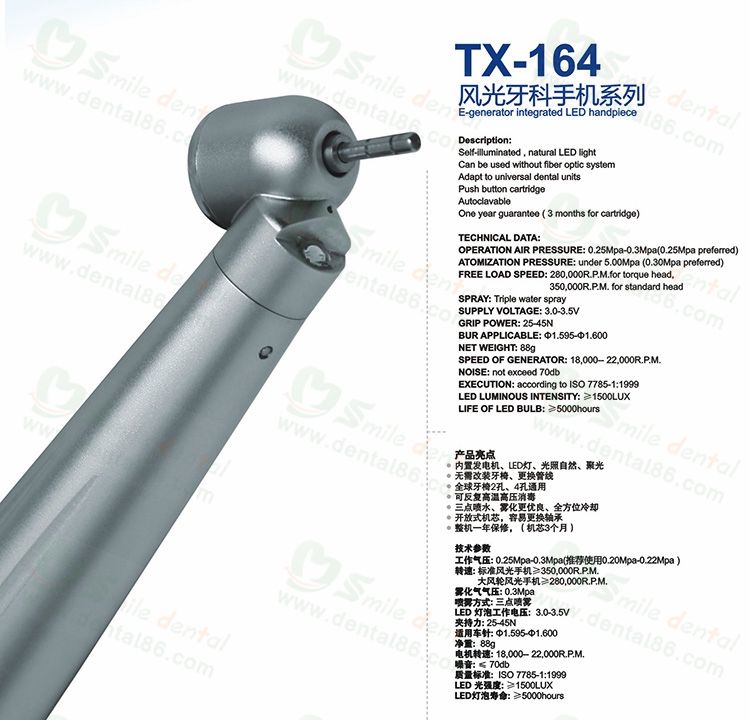

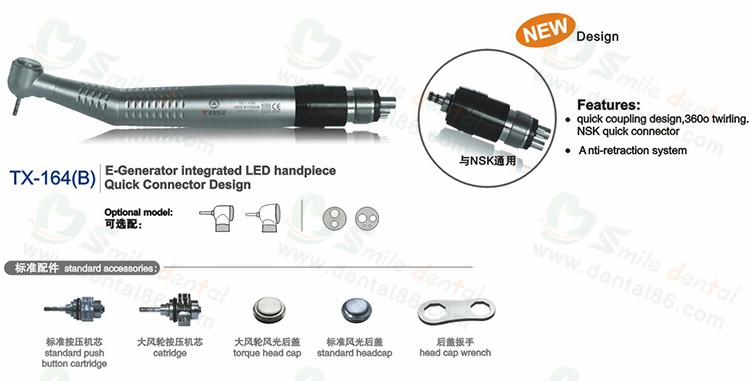

E-Generator LED Handpiece1

E-Generator LED Handpiece

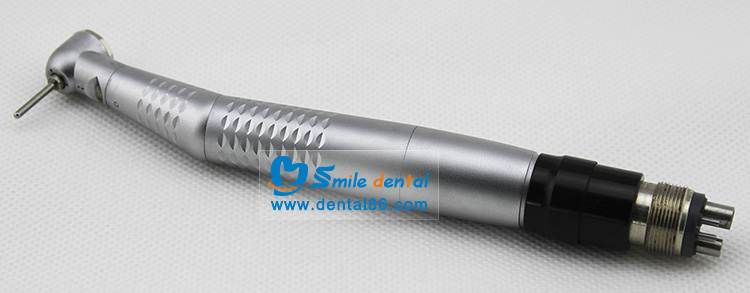

SDT-Pana-Max2 M4

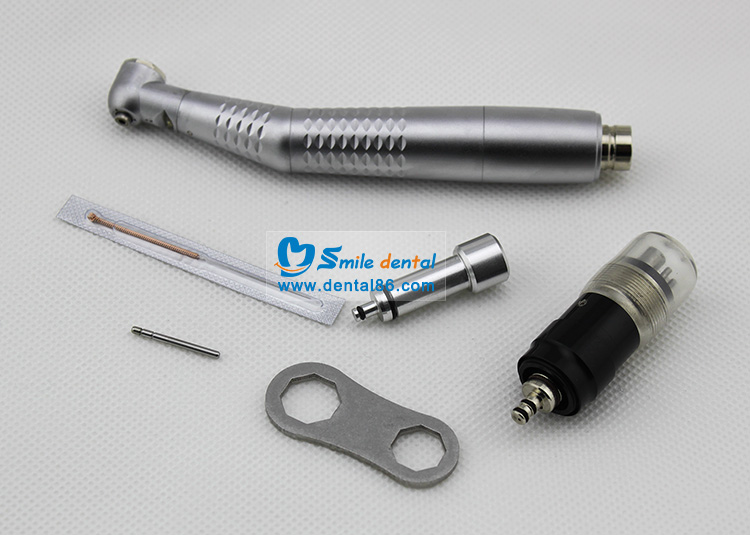

E-Generator LED Handpiece with Quick Coupler
