Image Plate Scanner Specification

Data

Size

Standard

High

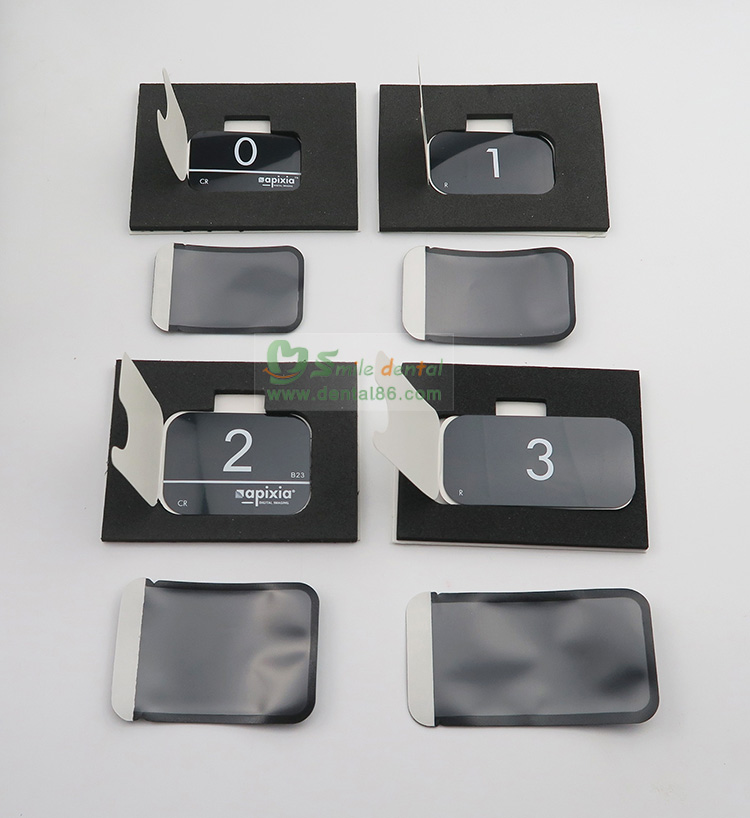

Support IP sizes

0（22×31mm）

343×484 pixels

628×885 pixels

1（24×40mm）

375×625 pixels

685×1143 pixels

2（31×41mm）

484×640 pixels

886×1171 pixels

3（27×54mm）

421×843 pixels

771×1542 pixels

Product Model

EQ-600

Selectable Pixel Size

35μm

Detector Technology

APS CMOS

Software*

UT-Dental

Active Area

32*54mm

Mechanical Size

34*55mm

Readout Time

15s

Data Capture

16-Bits     65,536 grey level

 Eraser

Embedded(auto)

Dimensions (H*W*D)

305*211*182mm

 Weight

6Kg

System Configuration

Windows XP,Windows 7,Windows 8,Windows 10

Power

100-240V(AC)  50/60Hz  1.5A

Interface

USB 2.0 high speed(480 Mbps) / Ethernet(100Mbps)

Work Tempreture

10 to 40 ℃

Storage Tempreture

 -25 to +60℃

Humidity
(non-condensing)

10 to 93% R.H
