DP51

DU852

PORTABLE:Portable box with low weiht and rod boxes style to make doctors move it freely.
FASHION DESIGN:Fashionable box design with coated with blue or grey color to make patients feel more comfortable.
PERFECT STRUCTURE:Compact structure consistent with doctor's habits to make them operate more easier.
COMPLETE FUNCTION:The unit consists of related operation system inside the dental treatment unit,such as air system,water system,suction and drainage.
SIMPLE OPERATION:Using when install the parts correctly and connect with power.And the unit controlled with foot control pad.
HIGH DURABILITY:High quality motor with steady performance,solid box to ensure antifall,service time exceeds 15,000 hours.Warranty is 1 year.
FREE MAINTANANCE:Oil free motor without any lubricated oil,drainage bottle is more convenient to remove and disinfect.
ENVIRONMENTALLY FRIENDLY:Foreign objects attached with germina would be disposed separately to avoid infection.
APPLICATIONS:Dental Hospital,Dental Clinics,Army and Outdoor Dental Care or Treatment Establishment.

Specifications:

• Air pressure input: 0.4-0.8Mpa
• Air pressure output: 0-0.4Mpa
• Air pressure for handpiece: 0.01Mpa~0.4Mpa
• Water pressure input: 0.2Mpa
• Water pressure output: 0-0.2Mpa
• Water pressure: 0.1Mpa~0.25Mpa
• Weight: 4 lbs (1.7 kg)
• Size: 6-1/4"x10"x8-3/4" (16×25×22cm)
• Warranty: 1-year
• Weight: 6LBS

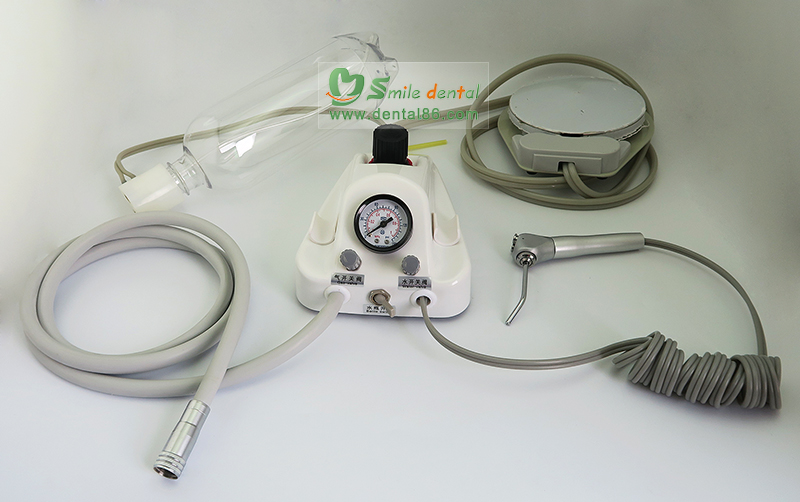

Parts:

       1. Foot switch
       2. Water bottle (650ml)
       3. Air fog adjustment
       4. Main air ajustment
       5. Four-hole connection for handpiece (handpiece not included)
       6. Water adjustment
       7. Air adjustment
       8. On/off switch

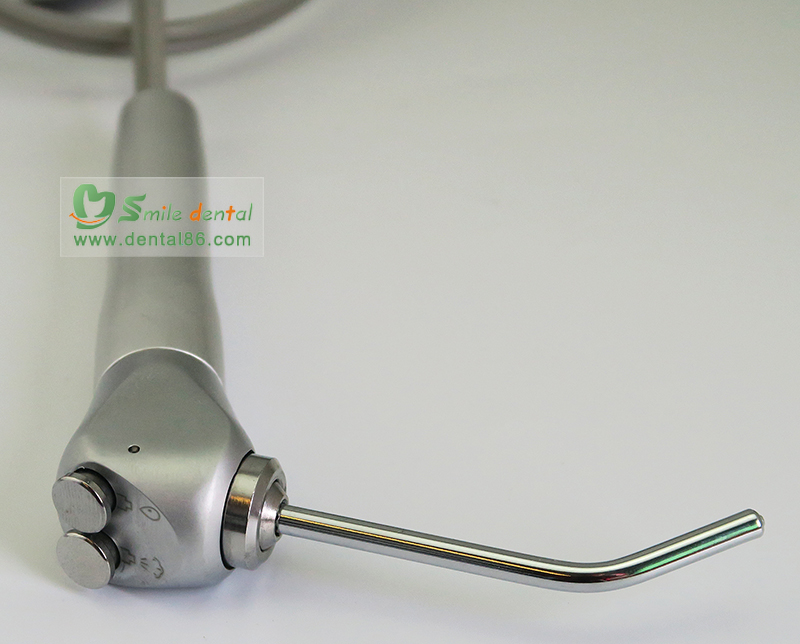

       9. Three-way syringe (included)













Standard Features:

4 hole or 2 hole handpiece tube 2 pcs
3-way syringe 1 pc
Clean water bottle: 1 L
Compressor head (550W) 1 set
On/Off Foot Switch 1 pc
Water Supply 1 set
Maximum pressure: 7.8 bar

Optional:

Handpieces 2 pcs
Fiber optic handpiece 2 pcs
Mobile patient chair 1 pc
Mobile dentist stool 1 pc
Operating light 1 pc
