Home > products
    - XR41
    XR41

    Digital Intra-Oral Sensor
    Size:1.5
    EzSensor soft
    Operation System:win7,win 10



    XR41 Digital Intra-Oral Sensor

    Pain Relief & Easy Positioning
    The Smallest PixelIt provides consistently higher resolution and clearer images for accurate diagnosis and treatment planning.
    Drop Resistant - Durable Sensor Materials
    THE SMALLEST PIXEL
    It provides consistently higher resolution and clearer images for accurate diagnosis and treatment planning.

    Detector CMOS
    Pixel Size 14.8 μm
    Theoretical Resolution 33.7 lp/mm
    Dynamic Range 12 bit
    Dimensions(WxLxT)

    32.5 x 44.0 x 5.5 mm [2.0]

    30.6 x 40.8 x 5.5 mm [1.5]
    37.8 x 26.6 x 5.5 [1.0]
    Active Area(WxL) 25.9 x 35.9 mm [2.0]
    23.9 x 33.0 mm [1.5]
    20.0 x 30.0 mm [1.0]
    Exterior Material Silicone (Bio-compatibility)
    Total Cable Length 2.7 m

     XR41 Digital Intra-Oral Sensor

    - XR44
    XR44

    Digital Intraoral Sensor

    1. DR730
    2. High-efficieny
    3. The airline domain dedicated sensor
    4. Compatible with different brands X-ray machine
    5. Waterproof
    6. Real solution is 16-20lp/mm
    7.Operation System:win7/win10




    XR44 Digital Intraoral Sensor

    Main Features of the Product

    ●Higher sensitivity plus higher resolution

    ●Better image quality with lowest X-ray dose


    APS CMOS technology

    ●18.5μm pixel size

    ●True line pair resolution as 27lp/mm

    ●TWAIN, which works compatible
     with the software of KODAK, SIRONA,
    SCHICK, etc.


    New software

    ●Easy to use.

    ●Powerful image processing & preprocessing.

    ●Net version for multi-user solution Easily
     connect to PACs system under DICOM 3.0
    protocol.


    Multi-user solution

    ●Can provide multi-user solution and every user
    may share the information in database.

    ●Plug and play connector allows the sensor to
    be moved from room to room freely.


    The Effect Of Image Processing

    ●Powerful image processing algorithms make it
    much easier read the image information


    Technology Parameters


    Model: DR730

    Chip Type: APS CMOS

    Pixel Size: 18.5um

    Dimension: 39x28.5x6mm

    Active Area: 30x22 .5mm
    Active Pixel Array: 1600x 1200mm

    Image Pixel: 1604x 1204mm

    Voltage (through USB connection): 5.0 V士0.5V

    Electricity Current (through USB connection):≤500mA

    Power:≤1W

    Digitization: 12/14/16 bit

    lmaging Time: 3~4s

    Resolution: 27lp/mm

    Signal Output: USB
    XR44 Digital Intraoral SensorXR44 Digital Intraoral Sensor


    - XR45A
    XR45A

    Intraoral Sensor HDR-500a
    HANDY 500A
    Operation System:win7/win10
    Sensor Active Area: 30×22.5



    XR45A Intraoral Sensor HDR-500a

    Digital Intraoral Sensor
    Technical Data
    Sensor: APS CMOS sensor
    External dimension (mm): 40×26 (HDR500A)
    Sensor Active Area: 30×22.5 (HDR500A)
    Sensor Thickness: 6 mm
    Dynamic Range: 0~4,096
    Power: 5V±0.5V
    Image Transfer: USB 2.0
    Cable Length: ≥ 3 m

    Operating Conditions
    Environment Temperature: +10℃~+40℃
    Environment relative humidity: ≤95%
    Air pressure: 860hPa~1060hPa
    Transport and Storage conditions:
    Environment Temperature: -25℃~+60℃
    Environment relative humidity: 10%~93%

    Feature
    1. Multi-languages with 10 types.
    2. Operation system: desk top & laptop (Win 7, Win 8, Win 10).
    3. Twain driver.
    4. Power: USB 2.0 interface.
    5. Excellent quality: our sensor material imported from Germany and Japan, best quality standards.
    6. New APS CMOS sensor with long life time (400,000 times).
    7. Warranty for one year.

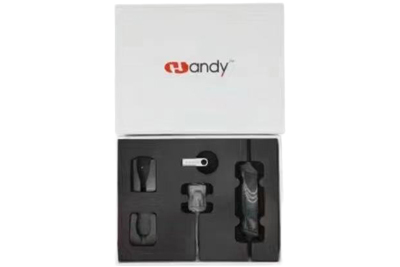

    Packing List
    1. Manual 1pcs
    2. CD 1pcs
    3. X-Ray Sensor and Control Box 1pcs
    4. Holder 2pcs
    5. Sleeves 1 bag
    XR45 Intraoral Sensor HDR-500a

    XR45 Intraoral Sensor HDR-500a

    XR45 Intraoral Sensor HDR-500a


    XR45a Intraoral Sensor HDR-500a

    XR45a Intraoral Sensor HDR-500a

    XR45a Intraoral Sensor HDR-500a
