    - XR60
    XR60

    Apixia (PSP) Digital Dental Imaging Phosphor Plate Scanner

    1. Apixia PSP Scanner

    2. Plate Sizes: 0, 1, 2, 3








    XR60 Apixia (PSP) Digital Dental Imaging Phosphor Plate Scanner

    Overview





    Small Size, Big Impact





    The Apixia PSP Scanner packs tremendous imaging power into a small package. Tiny enough to fit into the most crowded dental operatories for handy chairside use, yet robust enough to be placed in a central location for use by the entire office, the Apixia PSP Scanner is the ideal product for any size dental practice. Imaging with PSP plates offers all the flexibility and patient comfort of film, combined with the immediacy and environmental benefits of digital radiography. It's truly the best of both worlds.









    Images in Just a Few Easy Steps





    Imaging is fast and simple: Position and expose the flexible PSP plate just like a piece of film, remove it from the hygienic envelope, and drop it into the Apixia PSP Scanner. The smart top-loading design harnesses the power of gravity for simple loading and fuss-free use. In less than ten seconds, the crystal clear radiograph appears on the computer screen, ready for viewing. Then, just simply insert the next exposed plate when ready. The unit's in-line eraser clears the imaging plate for its next use automatically. When the plate is ejected from the bottom of the machine, it's ready for immediate re-use. Plus, plates are reusable thousands of times to maximize your investment. The sturdy design is whisper quiet and vibration free. And, bright LED lights in the machine's front control panel guide users every step of the way.





    Specifications





    Dimension:





    258 mm x 138 mm x 183 mm





    Weight:





    3.6 kg





    Voltage Requirements:





    AC 100-240 V AC 60/50 Hz





    Scan Time:





    10 seconds





    Resolution:





    17 lp/mm





    USB Cable Length:





    1.8 meters





    Connection Type:





    USB 2.0





    Computer System Requirements:
    Note: Computer not included
    Windows Versions
    Min. RAM
    Min. Video
    Card Min.
    Hard Drive Space
    Monitor
    Other





    Windows XP, Windows Vista, Windows 7 32/64 bit
    512 MB, 1 GB recommended
    Pentium4 CPU or better
    SVGA 1024 x 768
    40 GB
    High Quality Display (Flat Panel or CRT)
    recommended. 1000:1 Contrast Ratio and 0.255 dot
    pitch recommended
    Backup System highly recommended. High Speed Internet is suggested for enhanced technical support assistance.

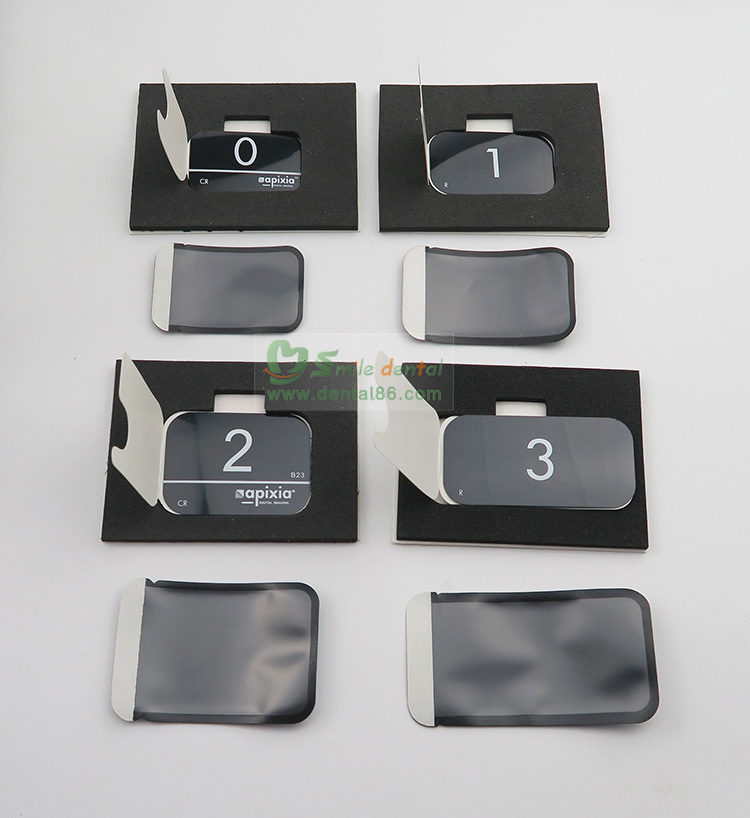

    Plate Sizes:





    Sizes 0, 1, 2, 3





    Gray Level:





    14 bit





    Limited Warranty:





    Two Years Parts and Factory Labor Limited Warranty. See Warranty for more details.





    Regulatory:





    US FDA, CE, IEC 60601-1, IEC 60601-1-2





    SDT-XR60 Apixia Digital Dental Imaging

    SDT-XR60 Apixia Digital Dental Imaging

    SDT-XR60 Apixia Digital Dental Imaging



    - XR6S1
    XR6S1

    Image Plate Scanner
    The image can be adjusted directly on the software
    Durable image plate, low cost
    Excellent image quality
    Three year warranty
    Applicable to size 0-3 image plates
    Simple and efficient operation process


    XR6S1 Image Plate Scanner
    XR6S1 Image Plate Scanner
    IMAGE PLATE SCANNER

    Inpixel provides dentists with high-resolution digital X- ray images to meet various diagnostic needs

    XR6S1 Image Plate Scanner

    Excellent image quality

    The exclusive and proprietary core technology enables the Inpixel Dental image Plate Scanner to distinguish all the details needed by the dentist, making the diagnosis clearer and more accurate

    XR6S1 Image Plate Scanner XR6S1 Image Plate Scanner
    SOFTWARE DESIGN
    Professional image processing
    The professional image processing software developed by our company allows you to easily scan, manage and share files

    Lightweight and flexible design

    Inpixel image plate scanner has a streamlined appearance design, light and flexible, is easy to use, and can be used directly beside the chair

    XR6S1 Image Plate Scanner
    XR6S1 Image Plate Scanner


    The characteristics of Inpixel Image plate scanner superior to traditional film

        No need for dark room operation
        No harmful chemical substances, safe and environmentally friendly
        Adjustable image to avoid overexposure or underexposure
        Digital images, ready to use
        Digital diagnosis and storage

    The characteristics of Inpixel image plate scanner superior to sensors

        Thin and soft, without data lines, increasing the comfort of patients
        The method of use is similar to that of traditional film, and you can use it right out of the box
        The surface of the image plate is 100% photosensitive
        Support image plate of various sizes

    Excellent industrial design achieves its high-end appearance; reliable quality wins the favor of most dentists; simple operation, ready to use out of the box.

    XR6S1 Image Plate Scanner
    XR6S1 Image Plate Scanner

    - XR6500
    XR6500

    Image Plate Scanner
    1.Simple Operation
    2.Lightweight Fuselage
    3.lmage Recognition
    4.Matching Different lP Boards
    5.Safety and Environmental Protection


    XR6500 Image Plate Scanner

    Specification
    Pixel size:30*30μm
    Scan Time:3s
    Image Plate:Size 0/1/2/3
    Driver:Twain
    Weight:≈1.4kg
    Dimension (W*H*D):21.8*8*8cm
    Operation system:Windows7810, Mac, Linux
    XR6500 Image Plate Scanner
